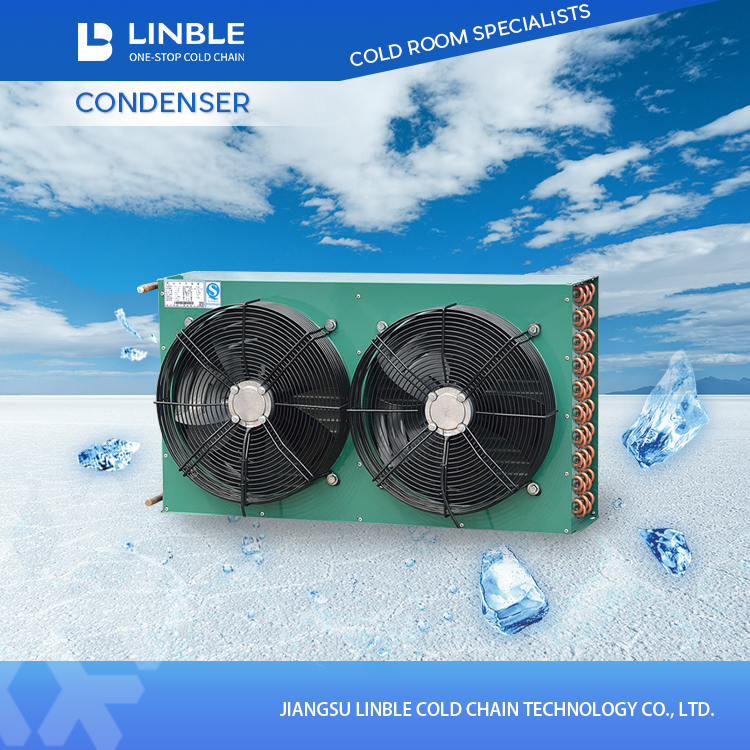

H Type Air Cooled Condenser

Share to:
sharethis sharing button
Linble cold chain was founded in 2018,which is based on the R&D, production and sale of cold rooms. Linble is a one-stop cold chain including refrigeration unit, condenser, air cooler, industrial door and loading and unloading platforms.
Availability:

冷凝器详情

Main features of H-type air cooled Condenser:

1.Condensers’ shell is made of high quality steel plate with plastic spraying, corrosion resistance and beautiful appearance.

2.Different refrigerants like R22, R134a, R404a and R407c are workable.

3.The condensers are tested under air pressure 2.5MPaguarabteeing the products’ high gas tightness.

4.High efficiency heat exchange coil is used.

5.The copper tube and fin are closely combined, and the heat transfer effect is good.


H-type air cooled Condenser Advantage:

1.Water resource is no needed and The operation cost is low.

2.Easy to install and use

3.It will not pollute the environment.

4.It is suitable for areas where water shortage is serious or water supply is difficult.


H-type air cooled Condenser Disadvantages

1.High input cost

2.The higher condensation temperature reduces the operation efficiency of refrigeration units.

3.It is not suitable for areas with dirty air and dusty climate.




ModelCooling capacity(kW)Copper pipe numberCooling Surface
(m2)
Fan Connection pipe(mm)
Quantity Power(W)Fan Dia Ф
(mm)
Air volume
(m3/h)
Vlotage
(V)
Inlet Outlet
FNH-0.6/2.10.62*43.111*352004302201010
FNH-1.0/3.413*43.411*352004302201010
FNH-1.5/5.01.53*5511*602509102201010
FNH-1.7/5.71.73*65.711*7530015302201010
FNH-2.2/82.24*6811*7530015302201212
FNH-3.5/123.54*81211*1203501800220/3801616
FNH-4.4/154.44*91511*1203501800220/3801616
FNH-5.4/185.44*101811*1804003000220/3801616
FNH-6.7/22A6.75*102211*1804003000220/3801616
FNH-6.7/22B6.74*82222*1203503600220/3801616
FNH-8.3/288.34*92822*12035036003801616
FNH-9.8/339.84*103322*18040060003801616
FNH-12.5/4112.54*124122*18040060003801916
FNH-14.8/4914.85*124922*18040060003801916
FNH-16/55164*145522*18040060003801916
FNH-17/60174*146022*18040060003801916
FNH-20/70204*187044*12035072003802519
FNH-23/80234*208044*180400120003802519
FNH-29/100295*2010044*180400120003802519
FNH-32/110325*2211044*180400120003803219
FNH-35/120355*2412044*180400120003803219
FNH-41/140415*2614044*250450180003803219
FNH-43.5/15043.55*2415044*250450180003803225
FNH-46.4/16046.45*2416044*450500240003803225
FNH-52.2/18052.26*2418044*450500240003803225
FNH-58/200586*2420044*450500240003803225
