Double-Side Blow Evaporator

Share to:

Linble cold chain was founded in 2018,which is based on the R&D, production and sale of cold rooms. Linble is a one-stop cold chain including refrigeration unit, condenser, air cooler, industrial door and loading and unloading platforms.

  • Double-Side Blow Evaporator

17

D series evaporator is a kind of cooling equipmrnt with Freon refrigeration equipment. There are three types : DL, DD and DJ, which are suitable for different storage temperatures.

DL type is suitable for fresh-keeping at 0° C, DD type is suitable for cold storage at - 18°C, DJ type is suitable for quick-freezing storage at - 25°C.


Product features:

1.The evaporator adopt staggered arrangement and have reasonable structure uniform frosting and high efficiency heat exchange

2.The evaporator are assembled with high quality fan motor with low noise, long range, big air volume and stable operation;

3.U-shaped stainless copper pipe with strong insulation is distributed in the fins, and the frost tolerance time is short.

4. Shell materials can be used prayed steel sheet, embossed aluminium sheet and stainless steel materials according to customer needs.

5.Non-standard design according to customer requirements




18

Model  Cooling   capacity(Kw)  Cooling Area( ) Fan  Inlet   and Outlet tube
Fan diameter( mm) Air   volume(m³/h) Quantity Voltage(V) Power   (W) Inlet   tube(mm) Outlet   tube(mm)
DLE-2.9/15 2.9 15 350 2300 1 220/380 180 12 19
DLE-3.8/22 3.8 22 350 2300 1 220/380 180 16 19
DLE-5.8/30 5.8 30 350 4600 2 220/380 180 16 28
DLE-7.8/40 7.8 40 350 4600 2 220/380 180 19 28
DLE-12/60 12 60 350 6900 3 220/380 180 19 28
DLE-16/80 16 80 350 9200 4 220/380 180 19 28

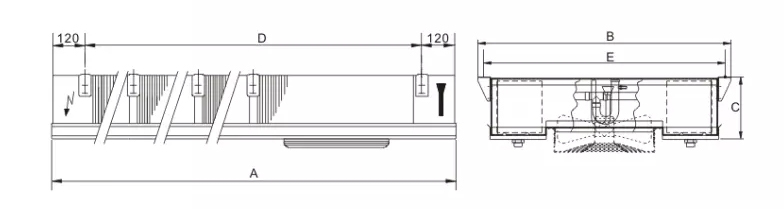

Installation dimension

Size Installation   dimension
A(mm) B(mm) C(mm) D(mm) E(mm)
DLE-2.9/15 905 905 300 660 900
DLE-3.8/22 905 950 300 660 900
DLE-5.8/30 1505 950 300 1260 900
DLE-7.8/40 1505 950 300 1260 900
DLE-12/60 2105 950 300 1860 900
DLE-16/80 2705 950 300 2460 900


About package,panels are packed by PVC film and refrigeration equipment are packed by wooden case. All wooden cases are not need fumigation.
You can choose by sea, by air, or via DHL, UPS ,TNT,FEDEX,EMS etc.We have professional shipping companies like MSK,CSCL,CNC,COSCO,APL to support us on shipment. Our products will be transported to you safely and quickly. We'll choose the most suitable way and lowest delivery cost for you.

When you receive the cold room door, you can not use the forklift. It will be damaged by forklift.
