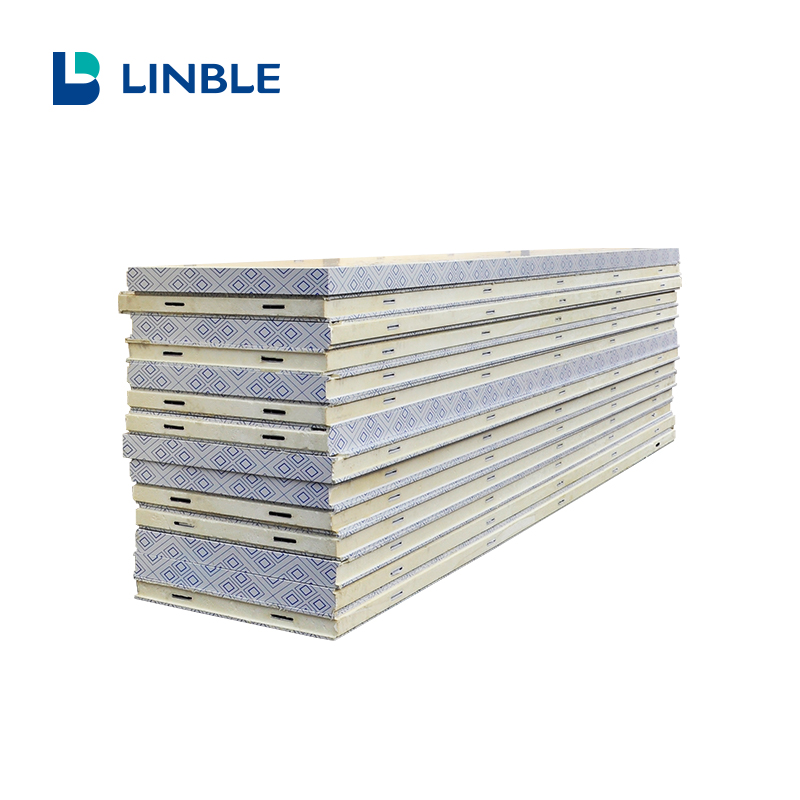

PU sandwich panel structure
Cam-lock type PU sandwich panel is connected by cam-lock, it is easy to install, and has advantages of fire resistance, high compressive strength, good sealing, and etc. It is suit for temperature of -50°C to +100°C, and nonperishable.
Taking polyurethane with excellent insulation performance as core material and pre-painted galvanized iron (PPGI/color steel), 304 stainless steel or aluminum as external material, PU sandwich panel can reduce the heat conduction due to difference between internal and external temperature to achieve maximum efficiency of freezing and refrigeration system.
Cold room applications
Cold room is widely used in food industry, medical industry, and other related industries.
In food industry, cold room is usually used in food process factory, slaughterhouse, fruit and vegetable
warehouse,supermarket,hotel, restaurant, etc.
In medical industry, cold room is usually used in hospital, pharmaceutical factory, blood center, gene center, etc.
Other related industries, such as chemical factory, laboratory, logistics center, they also need cold room.
Different applicable temperature with different thickness of PU panel
Features of PU sandwich panel:
(1) Size: the standard width of PU sandwich panel will be 960mm, the length can be customized, we suggest to produce length of 2900mm,5900mm or 11800mm, to suit the shipping container of 20GP, 40GP or 40HC.
(2) Connected by cam-lock with tape, no more polyurethane will be filled into cam lock when producing, it is easier to install.
(3) Using fluoride-free polyurethane and flame retardant, it is more environment-friendly and safe.
(4) For surface material of PU sandwich panel，it can be flat, or with ribbing of 15mm width or with ribbing of 50mm width.
(5) Foamed by high pressure with density of 38-42 kg/m3, the thermal insulation is good.
(6) We will supply L-shape metal, decorating metal and U-shape metal for cold room, they can also be customized.

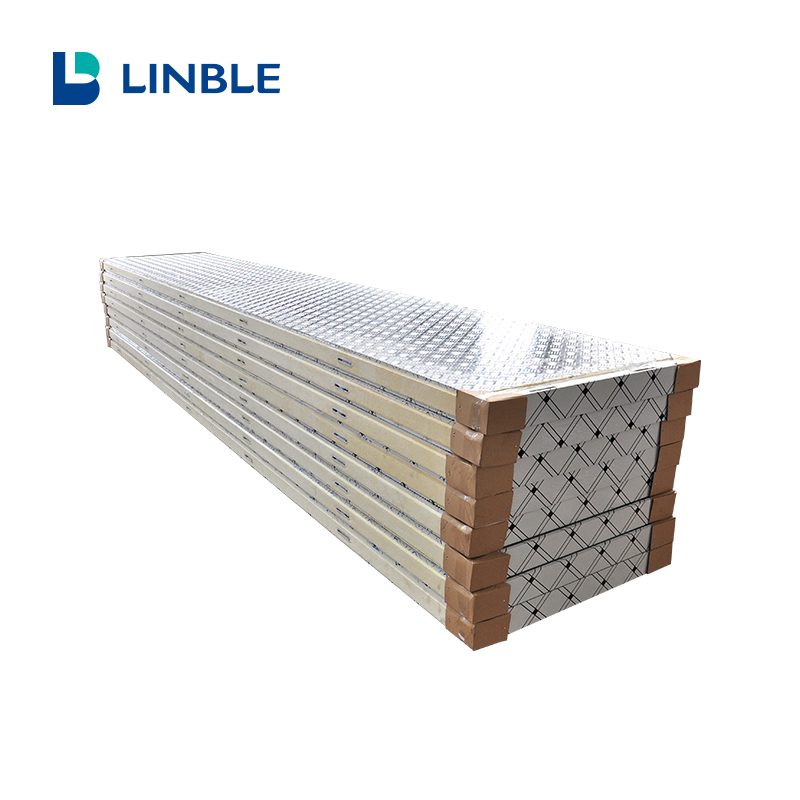

(7) Panels can be covered with embossed aluminum steel additionally for longer service life.
